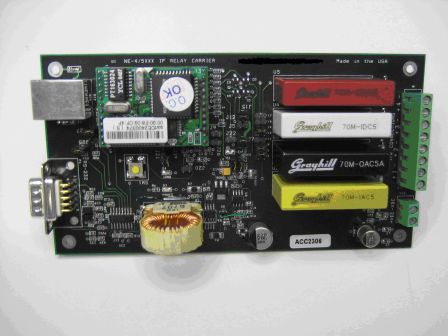

Four Channel OEM I/O Module Carrier Board
Home This four position OEM carrier board can be populated with 70 or 70M series digital I/O modules manufactured by
Products Grayhill and other vendors. The board supports the low cost Moxa NE4000T or standard and programmable versions of the
Applications Moxa NE4100T embedded network module. ModbusTCP support is optionally provided to allow internet connectivity with
White Papers applications such as Mango M2M Open Source SCADA. The board accepts either a fixed 5VDC or AC/DC power from 9-30 volts
In the Press and provides rugged I/O and power terminal connections.  An optional NEMA plastic enclosure and wireless access point are available.
About Us Two analog inputs are also available to connect devices such as temeparture and voltage sensors.
Contact Us
© 2007-2013 Cyclonic Systems,
All rights reserved.		 Download PDF User's Guide


Applications


    • Monitor contact closures from door sensors, motion detectors, sensors, etc.
    • Connect serial I/O devices (i.e. cameras, sensors, security peripherals).
    • Control external electrical contactors, remote peripheral power supplies, door locks, cameras etc.
    • Monitor a myriad of analog input types ( i.e. temperature, pressure, voltage, current).
    • Process external maintenace inputs from telecomunications and SCADA equipment.

          Features

    • 4 independent 70M I/O slots. Each can be configured as an input or output.
    • 2 Analog inputs. 0-5VDC. Mapped to Modbus Input Register space.
    • Wide power supply range and type allows for use in telecommunications central office environments,
    • remote locations, aircraft, vehicles and long haul repeater huts.
    • Supports 100 base-T Ethernet ( using NE4100T module).
    • Supports ModbusTCP protocol (using NE4100T module). 4 I/O slots mapped to Coil register space.
    • Compatible with ModbusTCP SCADA host applications that support the Coil and Input register space.
    • Serial port allows for virtual COM remote communications with downstream RTU and sensor devices.
    • WWW and Windows console programs available for direct I/O control environments.
    • Programable ( using NE4100T-P module) allows for unlimited custom designed software applications.
